LUMEN Series · Arch

Architectural
linear lighting.
Wireless inside.

1-metre modular linear luminaires for exterior facades, architectural walls, and inground architectural applications. Individual lamp modules replace in seconds — no electrician, no scaffolding, no tools.

Request a Sample How It Works
1m modules · continuous run
1m
Per Module
Scalable in 1m increments.
0
Exposed Contacts
Wireless power inside.
30
Seconds
Per lamp module swap.
IP68
Protection
Exterior rated.
316L
Stainless
Marine-grade body.
01 · How It Works

Modular linear.
Wireless lamp replacement.

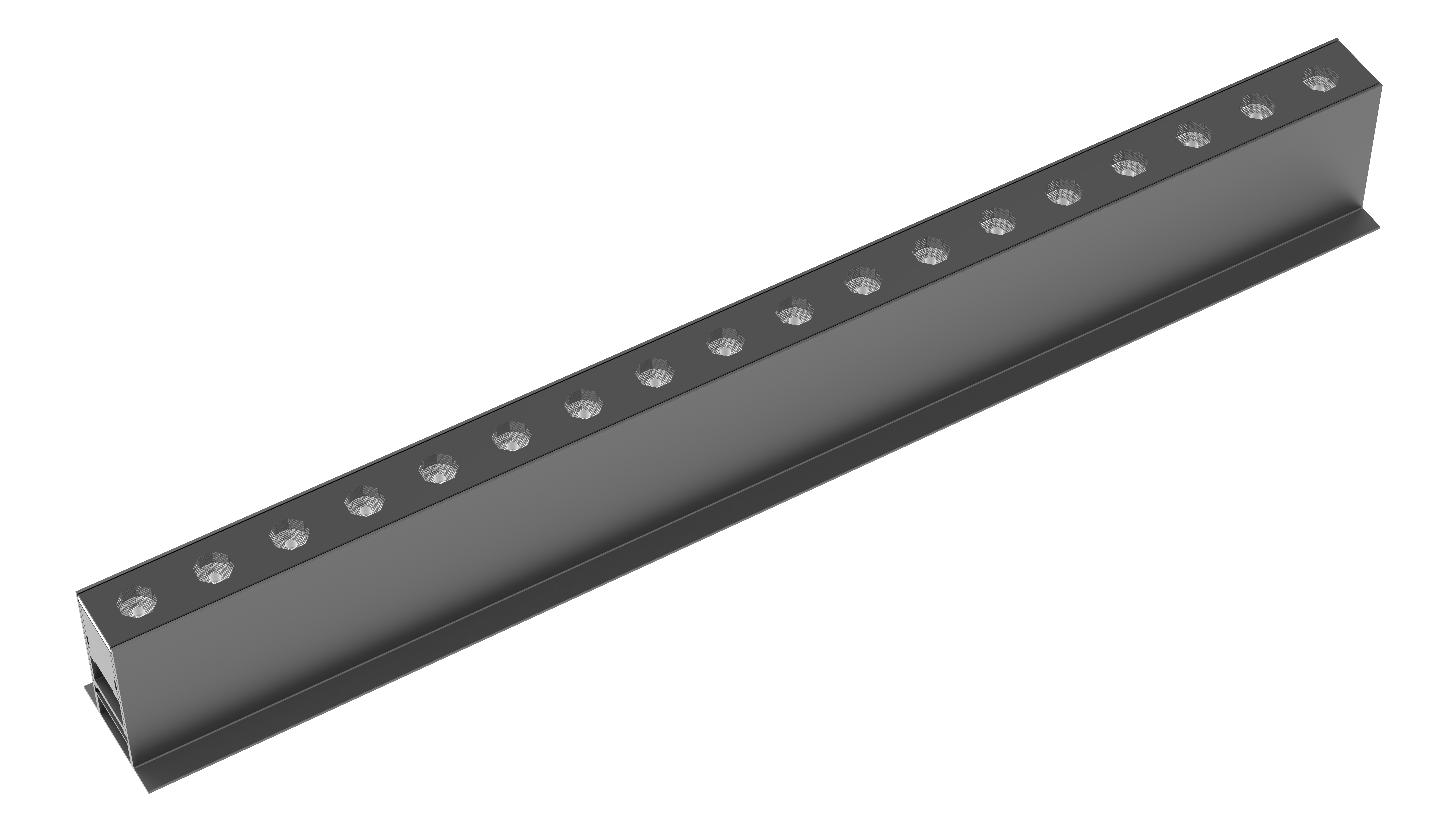

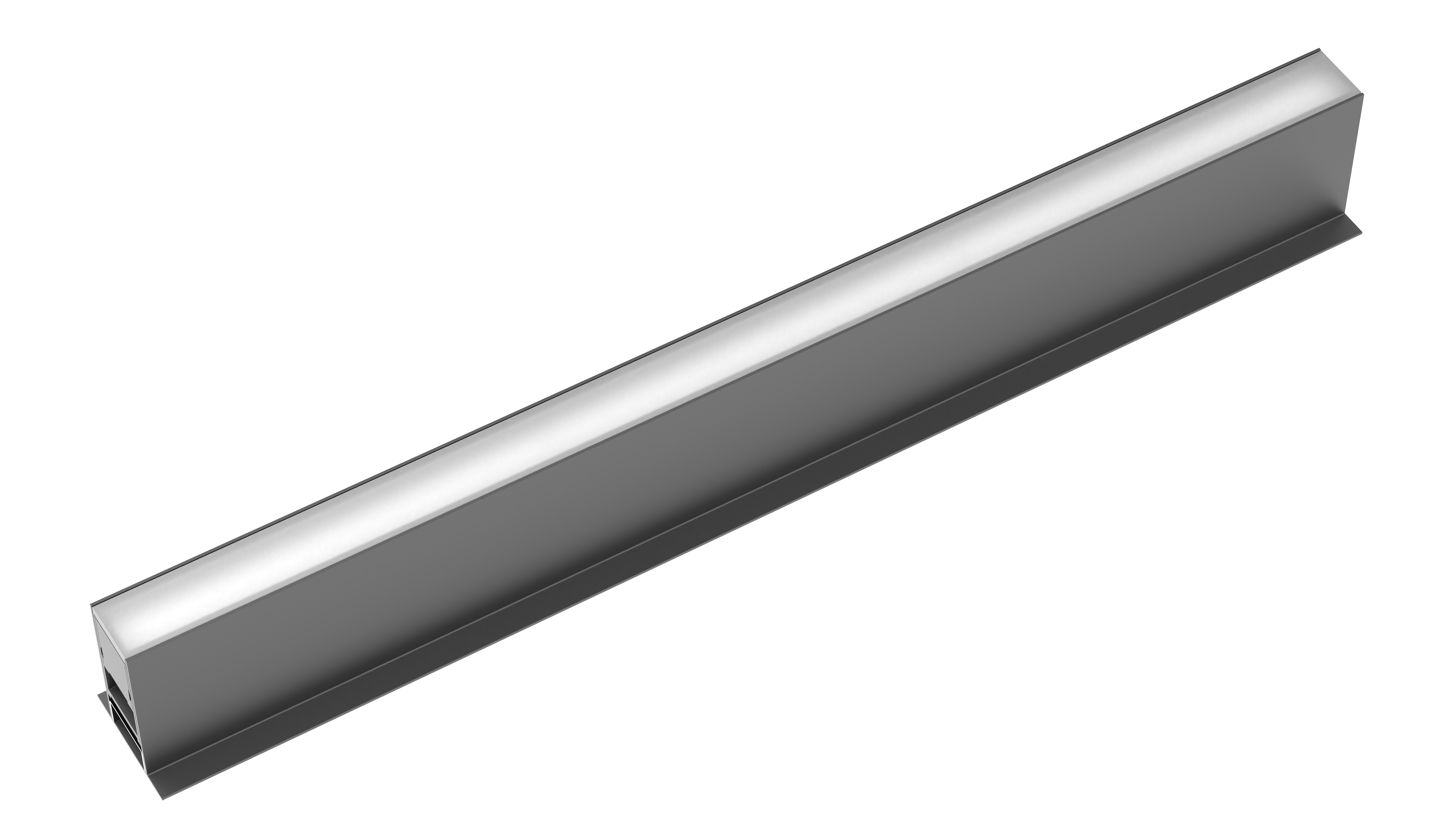

Each 1-metre Arch body is a permanently mounted unit containing the TX coil and drive electronics. The lamp module slots in and receives power wirelessly. Runs are assembled from individual bodies joined end-to-end.

1
Step 01
Bodies Mounted Once
Each 1m Arch body is fixed to the facade, wall or inground channel and wired in. The body is permanent. It contains the TX coil, resonant drive electronics and structural housing — never removed or serviced.
2
Step 02
Lamp Modules Seat In
The lamp module slides into the body and locks. TX and RX coils align. 6.78 MHz resonant inductive coupling transfers power wirelessly — no electrical contact between body and lamp. No exposed connectors on the facade.
3
Step 03
Module Replaced Per Metre
When a module dims, it is replaced individually. Each 1m lamp module swaps independently — no need to service adjacent modules or remove the body. No electrician. No scaffolding for accessible installations.
02 · Format & System

One-metre modules.
Unlimited runs.

Arch is designed around a 1-metre modular format. Bodies mount end-to-end to create continuous runs of any length. Each body is wired independently or in a daisy chain — your installation team specifies the configuration.

The modular format means a fault or dim lamp affects only one metre of a run. The replacement lamp module is small, lightweight, and carried by any maintenance operative. No section of the run needs to come down.

Module length
1 metre per body and lamp module
Run length
Unlimited — bodies join end-to-end
Wiring
Independent per module or daisy-chain configuration
Lamp replacement
Per module, independently — no adjacent disruption
Retrofit
New installation only — body mounting specified at project stage
Orientation
Surface mount (facade / wall) and inground (architectural channel)
03 · Applications

Every architectural surface.
One wireless platform.

🏢
Building Facades
Exterior uplighting and facade articulation for commercial, hospitality and residential buildings. Modular format adapts to any elevation geometry.
🏛️
Colonnades & Pergolas
Underlighting for colonnade soffits, pergola beams and covered walkways. Continuous runs from modular 1m bodies. Lamp replaced without removing the fitting.
🌉
Bridges & Waterfront
Marine environments demand sealed, contact-free design. IP68 316L stainless construction withstands salt, humidity and submersion. Lamp modules replaced from the walkway in seconds.
🧱
Retaining Walls
Grazing and uplighting along retaining walls and boundary structures. Surface-mounted bodies preserve the wall face. No penetrations, no contacts exposed to moisture.
🪜
Staircase Walls
Linear lighting along exterior staircase walls and risers. Continuous runs of 1m modules create clean architectural lines. Lamp modules replaced without disturbing adjacent sections.
⚓
Marina & Yacht Clubs
Pontoon edge lighting, berth markers, clubhouse facades. Salt-air and spray environments are no problem for IP68 316L Arch bodies. Contact-free lamp replacement at the waterside.
🏨
Hotel Architecture
Facade feature lighting, entrance canopies, porte-cochère soffits and pool terrace perimeters. Large runs maintained by facilities teams with no specialist callout.
🌿
Inground Architectural
Recessed linear channels in hardscape, plaza surfaces and architectural inground details. Lamp modules lifted from above — no excavation, no lifting of surface finishes.
04 · Specifications

Technical
specifications.

Module Length1000mm (1 metre) per body and lamp module
Power Output18W per module
Transfer Frequency6.78 MHz resonant inductive coupling
Protection RatingIP68 — exterior and submersion rated
Body Material316L Marine-grade stainless steel
Lamp InterfaceSlide-and-lock — tool-free, 30-second module replacement
Run ConfigurationEnd-to-end modular — unlimited run length
WiringIndependent per module or daisy-chain
MountingSurface mount (facade/wall) and inground channel
Lamp ContactsNone — fully wireless power transfer
RetrofitNew installation only
CertificationsECAS certification in progress (Bureau Veritas)
05 · Get in Touch

Request an
Arch sample.

Location
Dubai, United Arab Emirates

For projects
Share your facade dimensions and we'll advise on module count, wiring configuration and fixing details.

Also available
Aqua — Pool  ·  Terra — Inground
